Standardsett
Stamp laget av 46 mm tykke sideplanker i tre
2 spennbånd i rustfritt stål
Vedfyrt ovn i rustfritt stål med pipe, plassert inne i stampen
Sikkerhetsgjerde i tre
Benker og pen kant øverst
Utløpsventil for vannavløp
Trapp med 3 trinn
|
Hot tubs usage and maintenance |
| Product Details | |
| Side boards height | 110 cm |
| Bench height | 22 cm |
| Bench width | 21 cm |
| Inside oven | 1,5 mm thickness, AISI304 |
| Outside oven | 1,5 mm thickness, AISI430 |
| Water volume | 1600 L |
| Small submersible heater | |

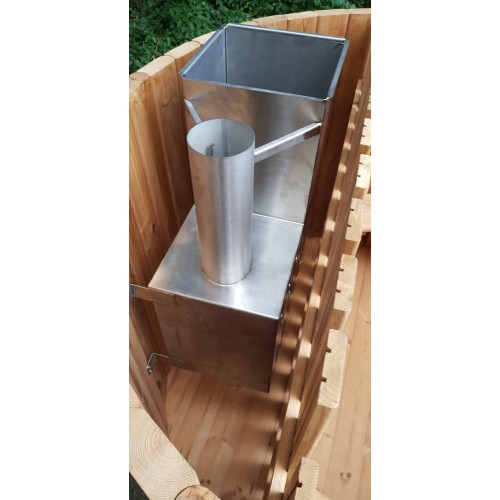

| Description | Internal hot tub heaters are made from high-quality stainless steel. These heaters are perfectly adapted to be used inside a hot tub ensuring efficient water heating. Snorkel stove size determines it‘s power and hot tub size application. Internal hot tub heater is mounted inside the hot tub, therefore saving space around the hot tub. As well it is easier to transport the hot tub. |
| Specifications | Inside stainless steel oven (1,5 mm thickness, AISI304 or AISI316): Power 18 kW, Height 73 cm, Length 60 cm, Width 30 cm, Weight 36 kg, Chimney height 1.4 m, Furnace 50 cm. Heater cover, Ash grates. |
| Medium round external heater | |
| Description | External hot tub heater is wood-fired, therefore no electricity is needed. As well external wood burning heaters are more safe compared to internal hot tub heaters, because they have no risk of touching the hot metal in being the tub. External wood burning hot tub heater saves space in the hot tub, allowing to get a smaller hot tub for the same amount of people. As well it is more easier to care and clean. |
| Specifications | Stainless steel outside oven (1,2 mm thickness, AISI304 or AISI 316): Power 30 kW, Height 63 cm, Length 62.5 cm, Width 55 cm, Weight 42 kg, Chimney height 1.4 m, Furnace 55 cm. Ash grates and drawer, Heater doors, Hot tub connectors and connecting hose, Wide clamps. |
| Medium external heater | |
| Description | External hot tub heater is wood-fired, therefore no electricity is needed. As well external wood burning heaters are more safe compared to internal hot tub heaters, because they have no risk of touching the hot metal in being the tub. External wood burning hot tub heater saves space in the hot tub, allowing to get a smaller hot tub for the same amount of people. As well it is more easier to care and clean. |
| Specifications | Stainless steel outside oven (1,5 mm thickness, AISI304 or AISI 316): Power 26 kW, Height 66 cm, Length 70 cm, Width 48.5 cm, Weight 55 kg, Chimney height 2 m, Furnace 38 cm. Ash grates and drawer, Heater doors, Hot tub connectors and connecting hose, Wide clamps. |
|

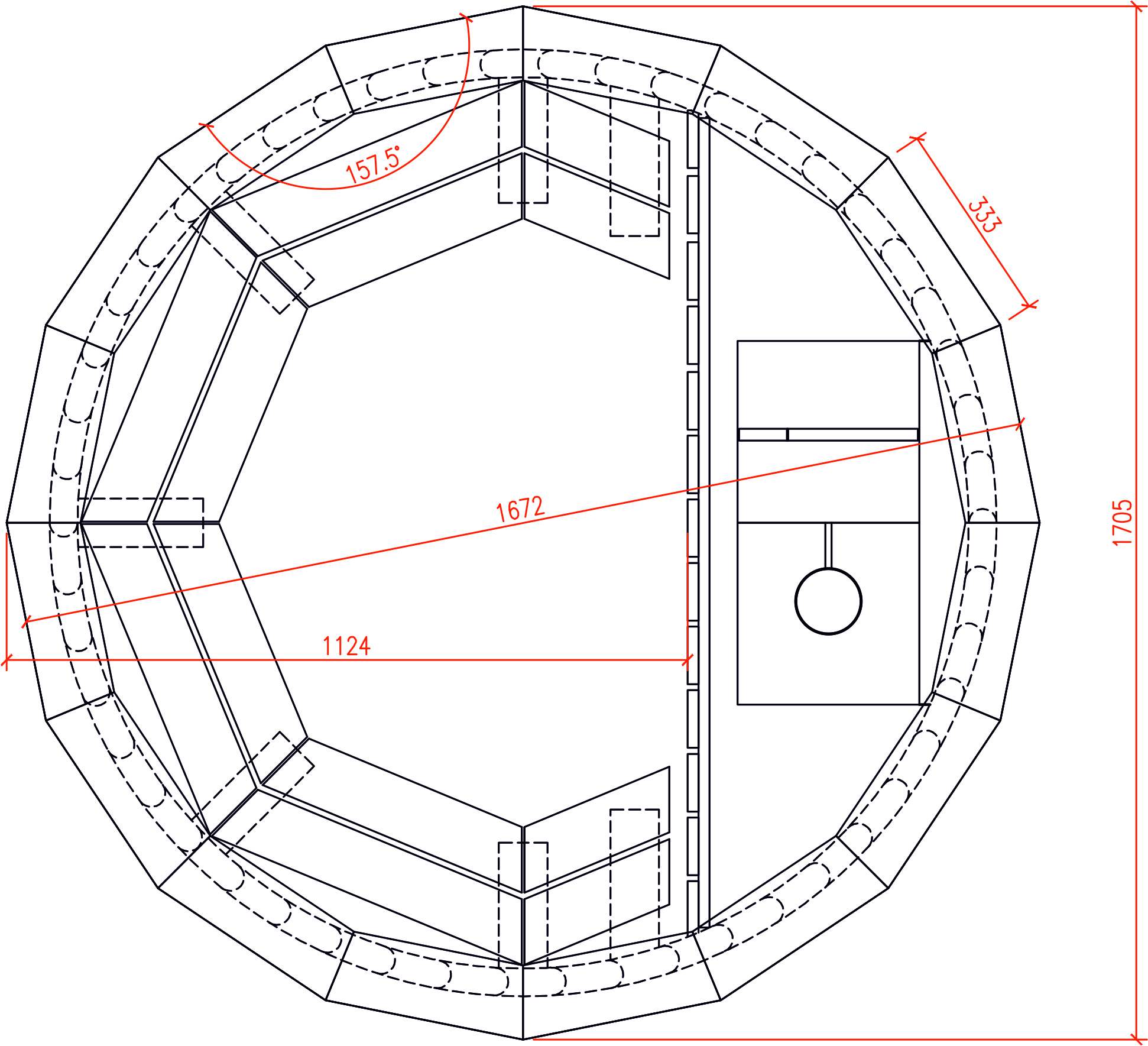

ASSEMBLING INSTRUCTIONS |
|
|
|
|
|
Hot tub with inside oven |
|
|
|
|
|
|
|
|
Hot tub with outside oven |
|
|
|
|
